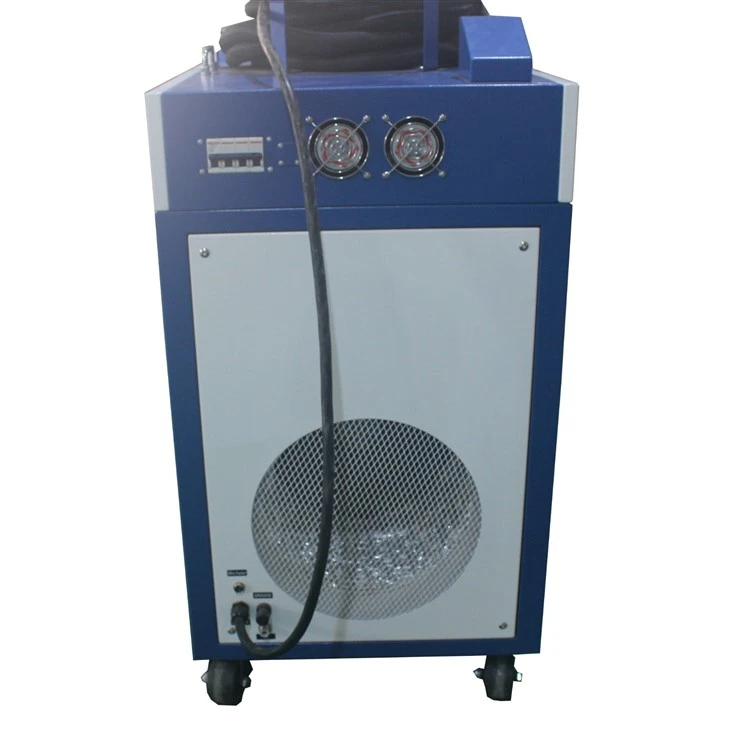

The handheld laser welding machine for metal is a cutting-edge technology that provides superior welding precision, high efficiency, and easy operation. It's portability and compact design make it perfect for welding applications that require welding repair and limited space. Additionally, it allows for a cleaner weld with minimal distortion and no additional material needed, making it a cost-effective and sustainable option for metal welding.
What’s the Technical data of handheld Laser Welding Machine for Metal?
|
No. |
Technical Index |
Parameters |
|
1 |
Model name |
Bt-1000W |
|
2 |
Laser source model |
MAX or Raycus |
|
3 |
Laser source power |
1000W |
|
4 |
Laser source waverlength |
1064nm±5nm |
|
5 |
Laser source frequency |
50-20000Hz adjustable |
|
6 |
Controller |
Qilim Brand |
|
7 |
Welding head |
Qilin Laser Head |
|
8 |
Cooling Mode |
Water Cooling |
|
9 |
Water Chiller |
2P,built-in chiller |
|
10 |
Adjusted spot ranger |
0.1-3mm |
|
11 |
Minimum Welding pool |
0.1mm |
|
12 |
Gas Source |
0.2Mpa(Argon) |
|
13 |
Working Voltage |
AC220V/50HZ/60HZ |
What's the advantage of handheld Laser Welding Machine For Metal?
|
1.Qilin Controller |
1. Configure different process modes to meet different process requirements. 2. To boost security and dependability, program a number of security alerts. 3. Support various linguistic systems |
|
2.Raycus 1000w Laser Source |
1. Free maintenance for a 100,000-hour lifespan. 2. Excellent beam quality and good (up to 25–30%) electronic optical conversion efficiency. 3. Dependability, a large modulation frequency range, and a high energy density |
|
3.Welding head |
1. A galvanometer with an adjustable 0.5–6mm bead width. 2. A specialized welding tip that can be used in any direction or setting 3. Infrared positioning for more accurate welding position |
|
4.Water Chiller |
1. Intelligent temperature regulation and compressor refrigeration 2. enhanced electro-optical conversion effectiveness 2.20 meters of warped fiber |
|
5.Optical fiber cable |
The usual length is 10 meters. |
Application
The handheld laser welding machine for metal is a versatile tool suitable for a wide range of applications. It can be used in various industries, including automotive, aerospace, electronics, and medical device manufacturing. This machine is designed to weld different types of metal, such as stainless steel, titanium, aluminum, and copper.
It is ideal for repair works, join dissimilar metals, and weld thin materials without affecting their quality. The compact and portable design of the handheld laser welding machine makes it suitable for use in small spaces, and it requires minimal training and operation time. Overall, it is a reliable and cost-effective solution for various metal welding needs.
Company Profile
Wuhan Keyi Optic & Electric Technology Co., Ltd. is a new & hi-tech enterprise ,located in international famous manufacturing city--Wuhan,integrated the laser,precision machinery, CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.
Laser marking, laser welding, laser cleaning, laser cutting, and laser engraving machines are some of our main offerings.
FAQ
Q: I've never used a device like this, is it easy to operate?
A: To help you use the device, you'll get an English instruction booklet and a training video.
If you still have concerns, we will provide you with a complimentary expert guide to help you use the equipment correctly.
Q: What should I do if a machine breaks down after I've ordered it?
A: Free components will be supplied to you if there is an issue with the machine during the warranty period.
The machine has free post-purchase assistance, if there is a problem, please get in touch with us.
Q: What is the MOQ?
A: The bare minimum order quantity is one machine set. Please provide us with the name of your port so we can send the equipment there right away. We'll send you the best machine and delivery prices.
Q: How do I choose the finest machine for my requirements?
A: Could you please explain what kind of work you want the machine to do?
They mostly consist of what materials?
Q: How soon will the machine be delivered?
A: normal machine typically takes 3 to 7 days to arrive. It takes 12 to 14 days to build a machine from scratch.
Q: Is there technical support accessible when we buy the machine?
A: We do have a top-notch after-sales service team to provide our clients with technical help.Our professionals may assist you with setup and free training after you receive the machine.
