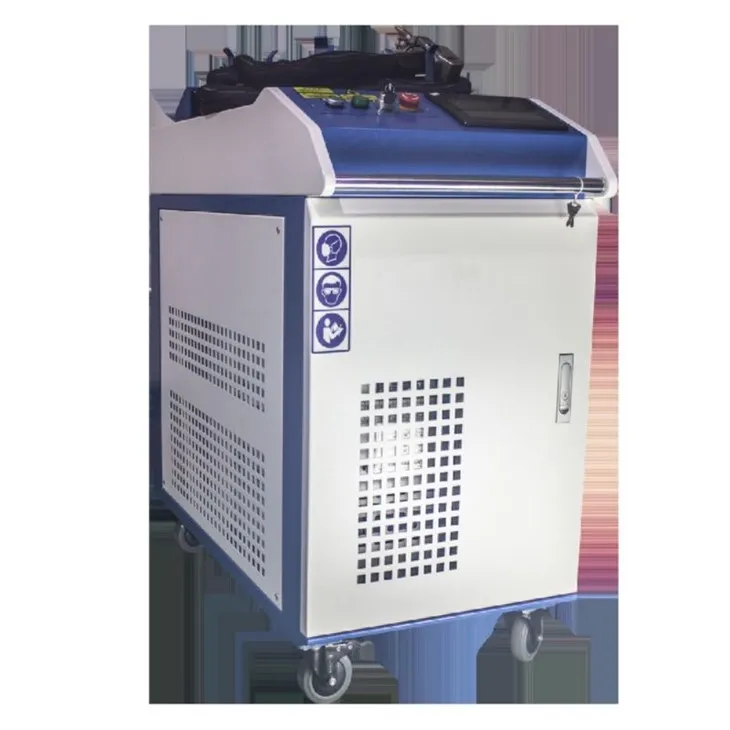

The laser welding machine with built-in water chiller is an advanced industrial tool that utilizes laser technology to weld various materials. This machine is equipped with a built-in water chiller to regulate the temperature during the welding process, ensuring precision and durability. It is suitable for both small and large-scale production processes and provides high-quality welding results.
What’s the Technical data of Keyi Fiber Laser Welding Machine ?
|
No. |
Technical Index |
Parameters |
|
1 |
Model name |
Bt-1000W |
|
2 |
Laser source model |
MAX or Raycus |
|
3 |
Laser source power |
1000W |
|
4 |
Laser source waverlength |
1080m |
|
5 |
Laser source frequency |
50-20000Hz adjustable |
|
6 |
Controller |
Qilim Brand |
|
7 |
Welding head |
Qilin Laser Head |
|
8 |
Cooling Mode |
Water Cooling |
|
9 |
Water Chiller |
2P,built-in chiller |
|
10 |
Adjusted spot ranger |
0.1-3mm |
|
11 |
Minimum Welding pool |
0.1mm |
|
12 |
Gas Source |
0.2Mpa(Argon) |
|
13 |
Working Voltage |
AC220V/50HZ/60HZ |
What's the advantage of Keyi Fiber Laser Welding Machine ?
|
1.Qilin Controller |
1.Preset multiple process modes to meet different process needs. 2.Preset multiple security alarms, more secure and reliable 3.Support multi country languages |
|
2.Raycus 1000w Laser Source |
1. 100,000 hours of lifetime, free maintenance. 2. High electronic optical conversion efficiency (up to 25-30%), excellent beam quality. 3. High energy density, and reliability, a wide modulation frequency
|
|
3.Welding head |
1.Galvanometer width adjustable, bead width 0.5-6mm. 2.Dedicated welding tip for welding at any position and angle 3.Infrared positioning, more accurate welding position |
|
4.Water Chiller |
1.Intelligent temperature control and compressor refrigeration 2.20μm fiber core warp, higher electro-optical conversion efficiency |
|
5.Optical fiber cable |
Standard length is 10 m |
Application
The laser welding machine with built-in water chiller is ideal for precision welding applications in industries such as automotive, aerospace, and electronics. Its advanced cooling system ensures consistent performance without the need for external cooling equipment, making it a cost-effective solution for high-volume production lines.
Company Profile
Wuhan Keyi Optic & Electric Technology Co., Ltd. is a new & hi-tech enterprise ,located in international famous manufacturing city--Wuhan,integrated the laser,precision machinery,CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.
Our Main Products Including Laser Marking Machine, Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine and Laser Engraving Machine.
FAQ
Q:This is the first time I use this kind of machine, is it easy operate?
A:There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q: If machine have any problem after I ordered it, how could I do?
A: Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
Q: MOQ?
A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: How can I choose the most suitable machine ?
A: Please tell us what kind of work you would like the machine to do?
What kind of materials mainly?
Q: How long can delivery the machine ?
A: Common machine can be delivered within 3~7 days. Customade machine need 12~14 days.
Q: lf there is any technical help after we receive the machine?
A: Yes, we have perfect after-sale service team to supply technical support to our customers.Our technical can assist you to install machine and give you free training after you receive machine
